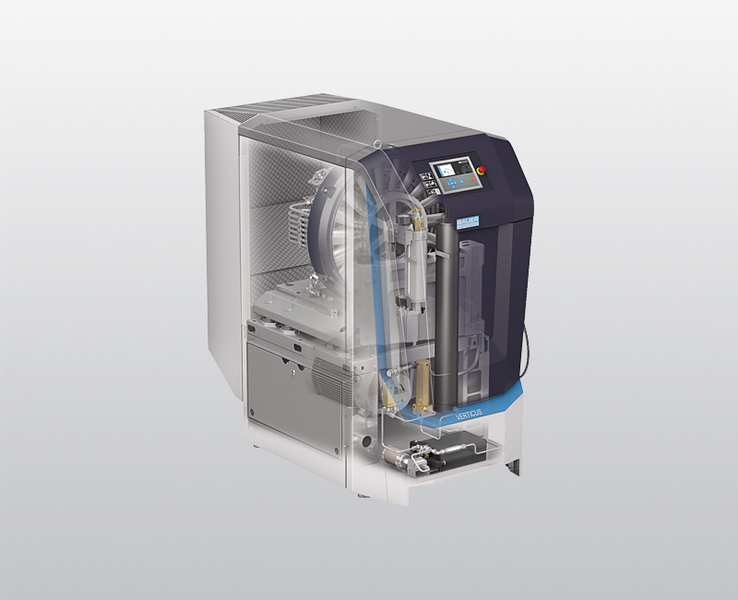

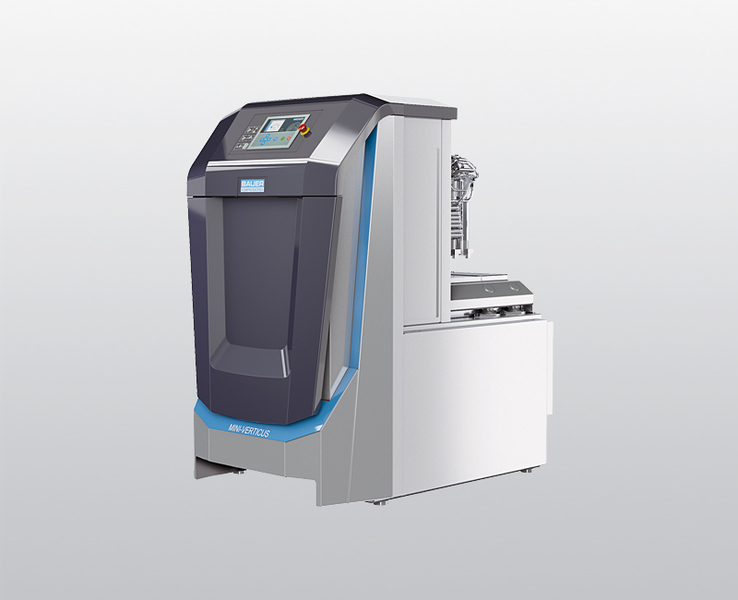

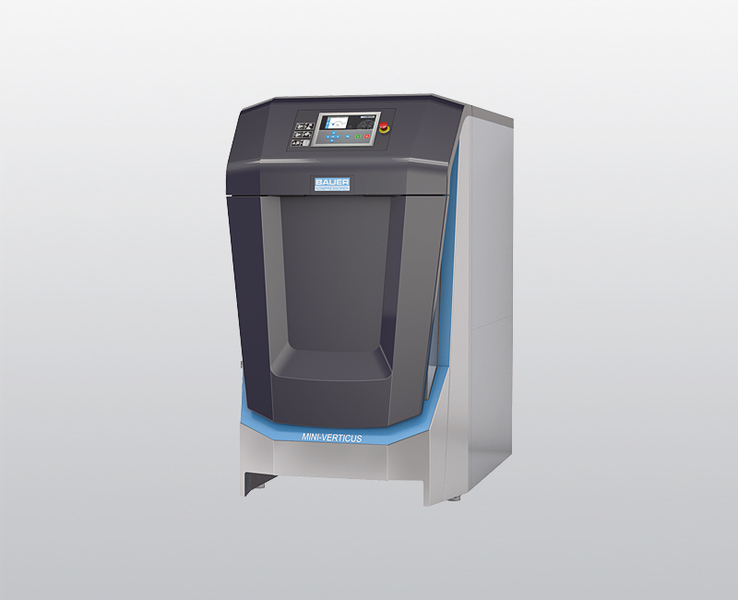

The E-series: MINI-VERTICUS – Compact configuration ready to go! With fully automatic compressor control B-CONTROL MICRO
BAUER 170 – 215 l/min (MINI-VERTICUS)
Opis
| Type
designation |
Effective
free air delivery ¹ |
Max. operating
pressure ² |
No. of
compr. stages |
Speed
approx. |
Motor
output |
Power
consumption ¹ |
Net weight approx. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min | m³/h | cfm | bar | psig | rpm | kW | kW | kg | lbs | ||
| E 12.4-3-MV | 170 | 10.2 | 6 | 85 | 1230 | 3 | 1150 | 3 | 2.7 | 316 | 697 |
| E 12.4-4-MV | 215 | 13 | 7.6 | 85 | 1230 | 3 | 1420 | 4 | 3.7 | 324 | 714 |
| E 120-4-MV | 215 | 13 | 7.6 | 100 | 1450 | 3 | 1420 | 4 | 3.7 | 324 | 714 |
¹ Free air delivery according to ISO 1217, power consumption at maximum final pressure under certain conditions. Other ambient conditions result in different performance data. Values valid for 50 Hz.
² Max. operating pressure = max. safety valve pressure setting; reduced switch-off pressure.
