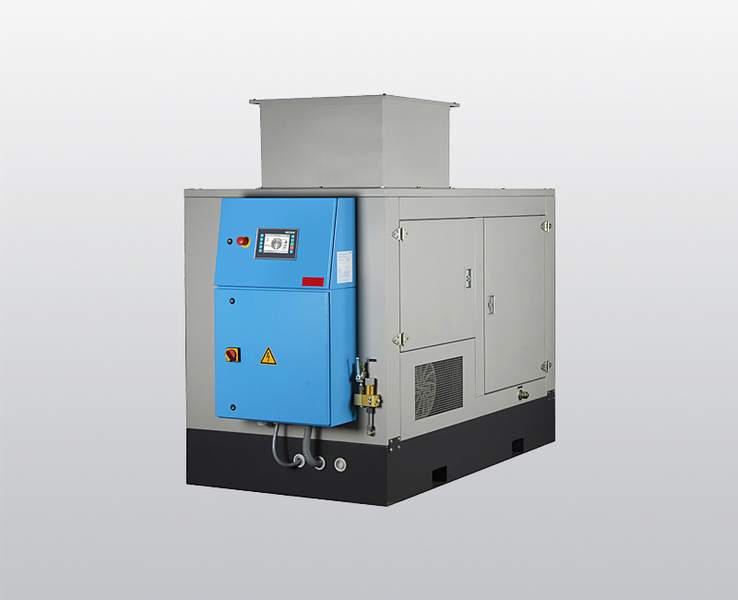

G series K 22 – K 25: High-pressure compressors for helium and argon in a horizontal design with robust dimensioning for applications such as helium recovery and noble gas bottling
BAUER 580 – 1520 l/min (large-scale block K 22 – K 25)
Opis
| Type
designation |
Effective
free air delivery ¹ |
Max. operating
pressure ² |
Number of
compressor stages |
Speed
approx. |
Motor
output |
Power
consumption ¹ |
Net weight approx.
</div> </div> |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min | m³/h | cfm | bar | psig | rpm | kW | kW | kg | lbs | ||
|
90 – 230 bar, air-cooled horizontal
|
|||||||||||
| G 22.0-18.5 | 580 | 35 | 20 | 230 | 3350 | 4 | 1050 | 18,5 | 15 | 540 | 1190 |
| G 23.1-22 | 670 | 40 | 24 | 230 | 3350 | 4 | 990 | 22 | 17 | 740 | 1630 |
| G 23.1-30 | 850 | 51 | 30 | 230 | 3350 | 4 | 1250 | 30 | 22 | 790 | 1740 |
| G 25.9-45 | 1520 | 91 | 54 | 230 | 3350 | 5 | 1180 | 45 | 38 | 1780 | 3920 |
|
230 – 350 bar, air-cooled horizontal
|
|||||||||||
| G 25.9-45 | 1320 | 79 | 47 | 350 | 5100 | 5 | 1050 | 45 | 36 | 1780 | 3920 |
¹ Free air delivery according to ISO 1217, power consumption at maximum final pressure under certain conditions, each valid for helium. Other ambient conditions result in different performance data. Values valid for 50 Hz.
² Max. operating pressure = max. safety valve pressure setting; reduced switch-off pressure.
Values for other noble gases are available on request.
