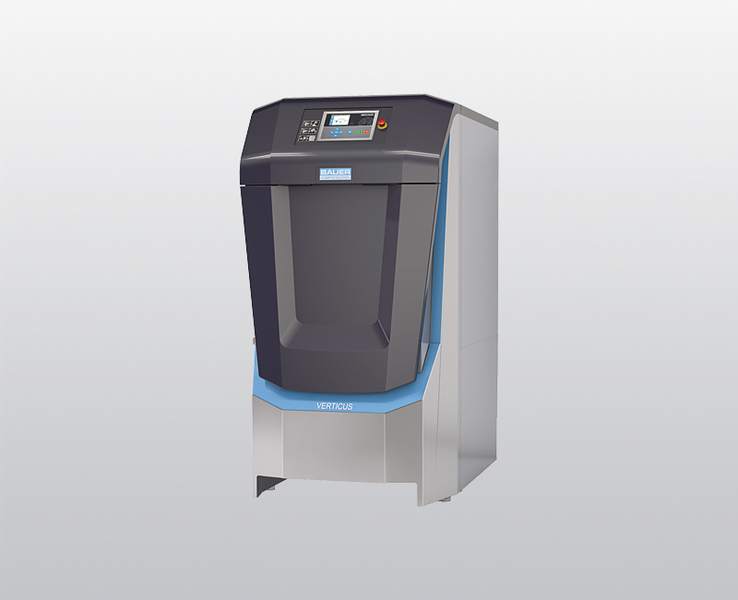

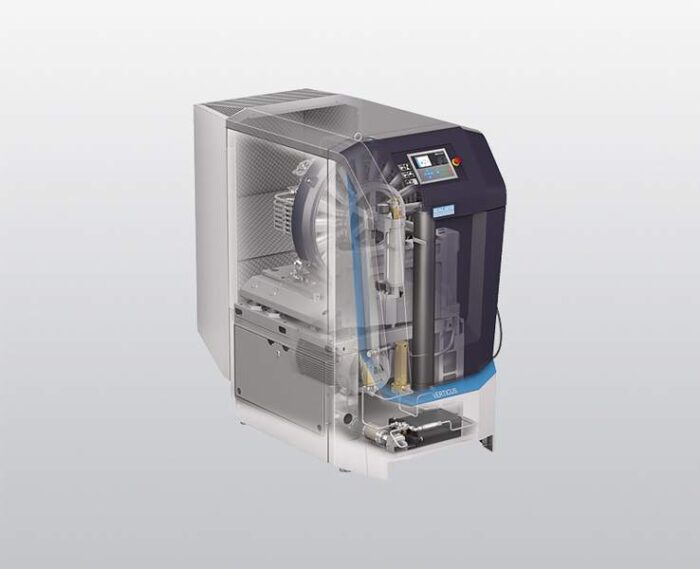

I-series: MINI-VERTICUS & VERTICUS – The classic high-performance BAUER high-pressure compressor series
BAUER 85 – 610 l/min (MINI-VERTICUS & VERTICUS)
Opis
| Type
designation |
Effective
free air delivery ¹ |
Max. operating
pressure ² |
No. of
compr. stages |
Speed
approx. |
Motor
output |
Power
consumption ¹ |
Net weight approx. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min | m³/h | cfm | bar | psig | rpm | kW | kW | kg | lbs | ||
|
90 – 365 bar
|
|||||||||||
| I 100-3-MV | 85 | 5.1 | 3 | 365 | 5300 | 3 | 900 | 3 | 2.2 | 316 | 697 |
| I 100-4-MV | 125 | 7.5 | 4.4 | 365 | 5300 | 3 | 1270 | 4 | 3.3 | 324 | 714 |
| I 120-4-MV | 170 | 10.2 | 6 | 365 |
5300
|
3 | 1200 | 4 | 3.7 | 324 | 714 |
| I 120-5.5-MV | 215 | 13 | 7.6 | 365 | 5300 | 3 | 1470 | 5.5 | 4.7 | 333 | 734 |
| I 12.14-7.5-MV ³ | 300 | 18 | 10.6 | 365 | 5300 | 4 | 1470 | 7.5 | 6.5 | 350 | 772 |
| Type
designation |
Effective
free air delivery ¹ |
Max. operating
pressure ² |
No. of
compr. stages |
Speed
approx. |
Motor
output |
Power
consumption ¹ |
Net weight approx. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min | m³/h | cfm | bar | psig | rpm | kW | kW | kg | lbs | ||
|
90 – 365 bar
|
|||||||||||
| I 15.1-7.5-V | 340 | 20.4 | 12 | 365 | 5300 | 4 | 1050 | 7.5 | 6.9 | 384 | 847 |
| I 15.1-11-V | 420 | 25.2 | 15 | 365 | 5300 | 4 | 1320 | 11 | 9.6 | 402 | 886 |
| I 150-11-V | 500 | 30 | 18 | 365 | 5300 | 4 | 1230 | 11 | 10.2 | 402 | 886 |
| I 180-15-V | 610 | 36.6 | 21 | 365 | 5300 | 4 | 1320 | 15 | 12.0 | 416 | 917 |
|
350 – 420 bar
|
|||||||||||
| I 15.11-7.5-V | 310 | 18.6 | 11 | 420 | 6100 | 4 | 960 | 7.5 | 7.0 | 408 | 900 |
| I 15.11-11-V | 420 | 25.2 | 15 | 420 | 6100 | 4 | 1320 | 11 | 10.4 | 426 | 939 |
| I 18.1-15-V | 515 | 30.9 | 18.2 | 420 | 6100 | 5 | 1490 | 15 | 13.0 | 468 | 1032 |
|
420 – 525 bar
|
|||||||||||
| I 15.11-7.5-V | 310 | 18.6 | 11 | 525 | 7600 | 4 | 960 | 7.5 | 7.0 | 408 | 900 |
| I 15.11-11-V | 420 | 25.2 | 15 | 525 | 7600 | 4 | 1320 | 11 | 10.4 | 426 | 939 |
| I 18.1-15-V | 510 | 30.6 | 18 | 525 | 7600 | 5 | 1490 | 15 | 13.5 | 468 | 1032 |
¹ Free air delivery according to ISO 1217, power consumption at maximum final pressure under certain conditions. Other ambient conditions result in different performance data. Values valid for 50 Hz.
² Max. operating pressure = max. safety valve pressure setting; reduced switch-off pressure.
³ Not suitable for nitrogen
