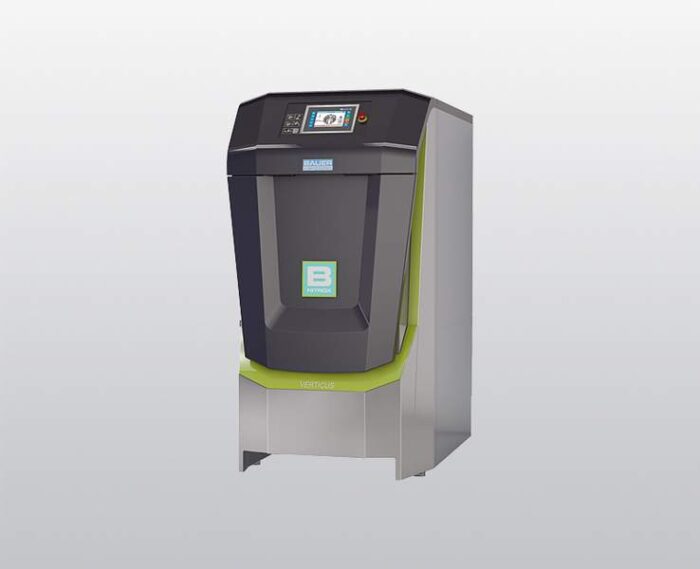

The BAUER B-NITROX system – Nitrox with integrated and safety certified by the TÜV
BAUER B-NITROX membrane system 260 – 450 l/min
Opis
| Type
designation |
Effective
free air delivery ¹ |
Number of
compressor stages |
Speed
approx. |
Motor
output |
Dimensions
L × W × H |
||
|---|---|---|---|---|---|---|---|
| l/min | m³/h | cfm | rpm | kW | cm | ||
| MV260-OX | 260 | 15.6 | 9 | 4 | 1185 | 5.5 | 120 × 81 × 138 |
| MV320-OX | 320 | 19.2 | 11 | 4 | 1450 | 7.5 | 120 × 81 × 138 |
| V450-OX | 450 | 27 | 16 | 4 | 1320 | 11 | 120 × 81 × 153 |
| MARINER-OX-320-E | 320 | 19.2 | 11 | 4 | 1450 | 7.5 | 130 × 64 × 70 |
¹ Measured with cylinder filling (10 l) from 0 to 200 bar, ±5%
