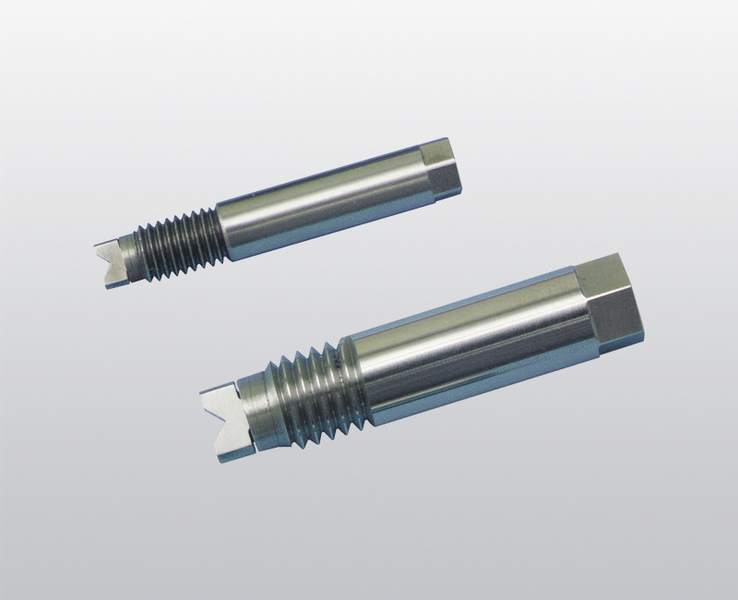

Gas injectors: The BAUER injector range for all gas injection processes
BAUER Gas injectors
Opis
| Product reference | Diameter | L | A | Thread | |
|---|---|---|---|---|---|
| N27120 | DAI0326-A | 3 mm | 26 mm | 2,5 mm | M3 |
| N27121 | DAI0428-A | 4 mm | 28 mm | 3,5 mm | M4 |
| N27122 | DAI0530-A | 5 mm | 30 mm | 4,5 mm | M5 |
| N27123 | DAI0633-A | 6 mm | 33 mm | 5 mm | M6 |
| N27124 | DAI0836-A | 8 mm | 36 mm | 7 mm | M8 |
| N27125 | DAI1042-A | 10 mm | 42 mm | 9 mm | M10 |
| N27126 | DAI1246-A | 12 mm | 46 mm | 10 mm | M12 |
Other dimensions and version with gasket on request.
