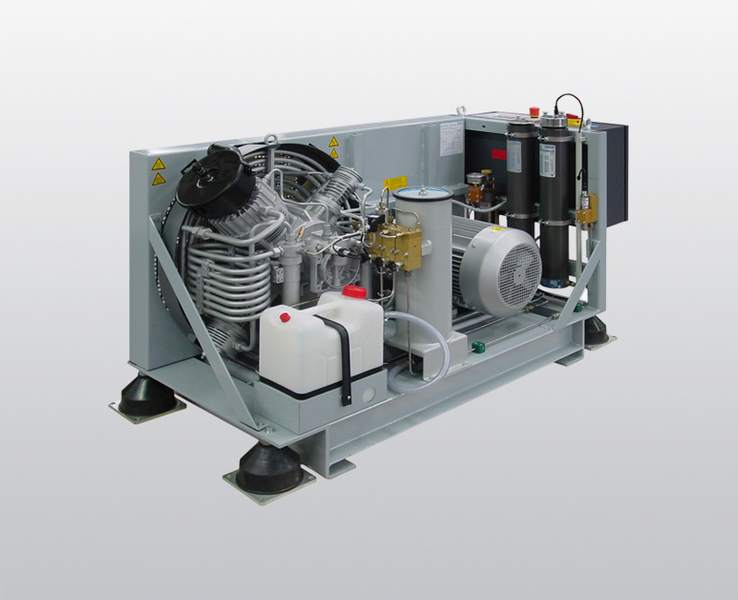

KAP-HN – The incredibly hard-wearing breathing air compressors for continuous operation in civil and military shipping
BAUER KAP-HN, 370 – 660 l/min
Opis
| Type
designation |
Charging rate ¹ | Max. operating
pressure |
Speed
approx. |
Motor
output |
Filter
system |
Net
weight |
Dimensions
L × W × H |
||
|---|---|---|---|---|---|---|---|---|---|
| l/min | cfm | bar | rpm | kW | kg | lbs | cm | ||
| KAP 15.1-7.5-HN | 370 | 13 | 330 | 1050 | 7.5 | P 41 DUO | 480 | 1050 | 165 × 72.5 × 92 |
| KAP 150-11-HN | 540 | 19 | 330 | 1230 | 11 | P 41 DUO | 505 | 1110 | 165 × 72.5 × 92 |
| KAP 180-15-HN | 660 | 23 | 330 | 1320 | 15 | P 41 DUO | 520 | 1150 | 165 × 72.5 × 92 |
¹ Measured with cylinder filling (10 l) from 0 to 200 bar, ±5%
